Container Type PSA Nitrogen Generation System
  • Container Type PSA Nitrogen Generation System
  • Container Type PSA Nitrogen Generation System

    • Container Type PSA Nitrogen Generation System

    Custom-Built PSA Nitrogen Generator

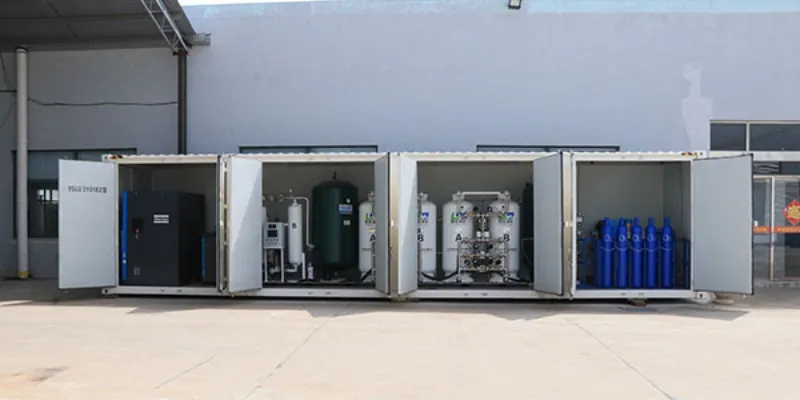

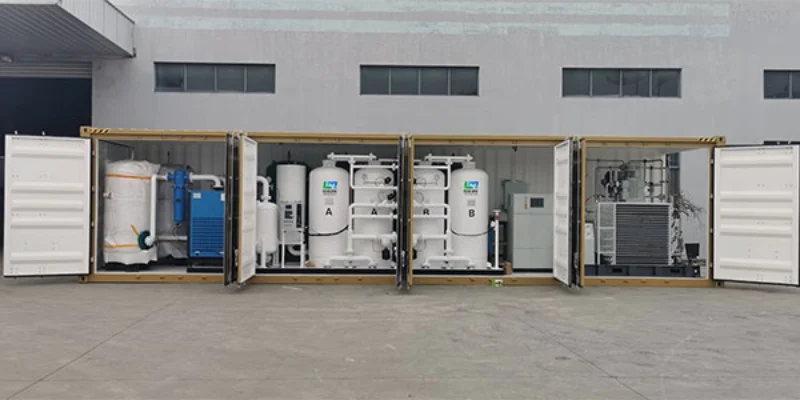

    The containerized nitrogen generator features a system integrated within a standard container, a structural configuration specifically engineered for mobile and outdoor applications. This configuration does not alter the core nitrogen separation principle.

    Leave a Message
    Key Features
    • High nitrogen purity with maximum purity up to 99.9995%.
    • Rapid startup with qualified nitrogen available within 30 minutes.
    • Online monitoring and display of nitrogen purity, flow rate, and pressure.
    • Fully automatic control supporting unattended operation.
    • Skid-mounted integrated structure with compact footprint and easy installation.
    • Customized pressure and dew point configurations, with dew point down to -70°C available.
    Technical Specifications
    • Nitrogen capacity: 1-500Nm³/h (customizable based on configuration)
    • Nitrogen purity: 95%-99.9995%
    • Outlet pressure: 0-0.65MPa (adjustable), other pressure ranges available on request
    • Nitrogen dew point: ≤-40°C (standard), optional down to -70°C
    Customization

    Customers may select standard containers or customized container dimensions. The container functions as a mobile gas generation workshop. Luoming provides the following upgrade options based on project requirements.

    • Thermal Foam Thermal Foam
      High-performance thermal insulation ensures reliable operation in extreme cold or sub-zero regions.
    • Integrated Alternator Integrated Alternator
      Integrated generator installation supports independent power supply.
    • Ventilation Fans Ventilation Fans
      Ventilation fan installation ensures effective heat dissipation.
    • Door opening configuration (Side door opening) Door opening configuration (Side door opening)
      Flexible door configurations (front and side) allow for convenient operation and maintenance access.
    • Door opening configuration (Front door opening) Door opening configuration (Front door opening)
      Flexible door configurations (front and side) allow for convenient operation and maintenance access.
    • Air-conditioning unit Air-conditioning unit
      Air-conditioning installation maintains stable operating temperature.
    • Lighting system Lighting system
      Integrated lighting supports safe operation and maintenance.
