    Custom Nitrogen Generation System

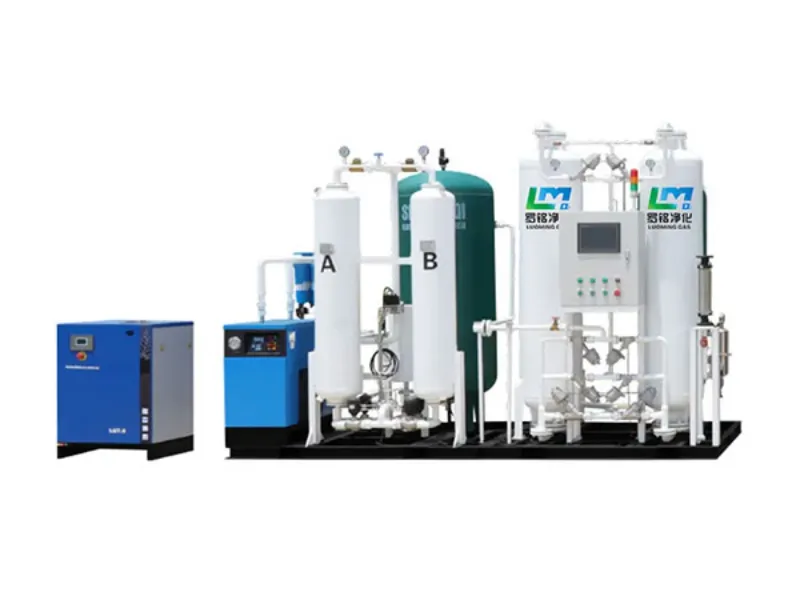

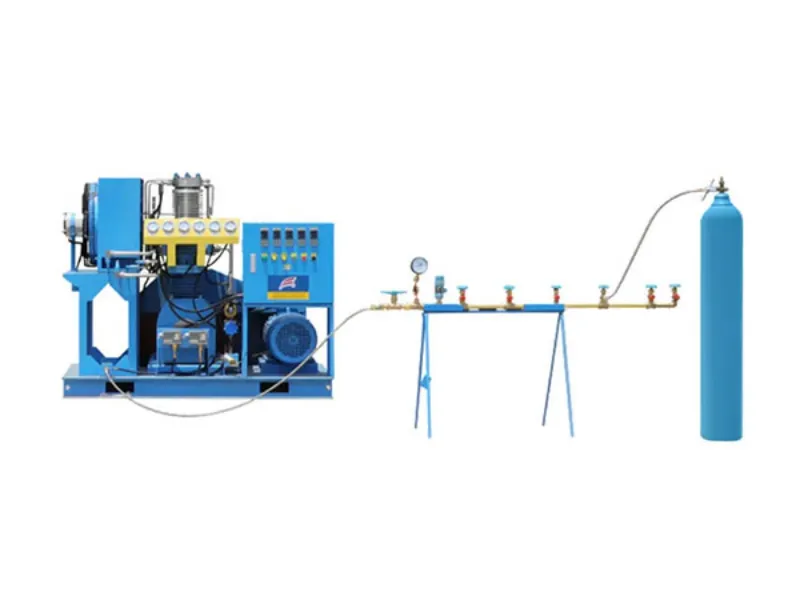

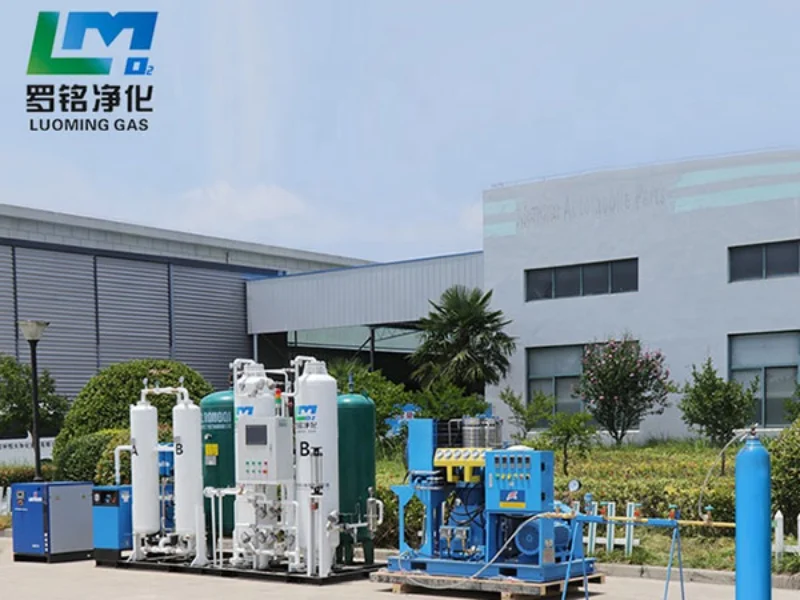

    Custom-Built PSA Nitrogen Generator with Nitrogen Filling Station

    The nitrogen filling station enables on-site nitrogen generation and cylinder filling, reducing cylinder procurement and transportation costs. On-site nitrogen production lowers storage pressure requirements and supports flexible filling operations. Surplus nitrogen can be filled into cylinders for external supply, improving overall economic efficiency. Nitrogen filling equipment supports industries requiring inert atmospheres and high-purity nitrogen. Cost efficiency, continuous availability, and environmental benefits make this configuration a valuable investment for improving operational efficiency and product quality. Industrial growth continues to expand demand for nitrogen filling across multiple application sectors.

    Technical Specifications
    • Nitrogen capacity: 1-3000Nm³/h
    • Nitrogen purity: 95%-99.9995%
    • Outlet pressure: 0-0.65MPa
    • Atmospheric dew point: ≤-40°C
    Key Features
    • High nitrogen purity, reaching up to 99.9995%.
    • Rapid startup with qualified nitrogen available within 30 minutes.
    • Real-time online monitoring and display of nitrogen purity, flow rate, and pressure.
    • Fully automatic control supporting unattended operation.
    • Skid-mounted integrated structure with compact footprint and convenient installation.
    • Customized pressure and dew point options on demand, with dew point down to -70°C available.
    Technical Parameters

    Parameters (model structure applies similarly to 99%, 99.5%, 99.9%, 99.99%, and 99.999% configurations)

    Model Purity Nitrogen capacity (Nm³/h) Inlet nominal diameter Outlet nominal diameter
    LMFD99-1 99% 1 DN15 DN15
    LMFD99-5 99% 5 DN15 DN15
    LMFD99-10 99% 10 DN15 DN15
    LMFD99-20 99% 20 DN20 DN15
    LMFD99-30 99% 30 DN20 DN25
    LMFD99-40 99% 40 DN20 DN25
    LMFD99-50 99% 50 DN32 DN25
    LMFD99-100 99% 100 DN32 DN40
    LMFD99-120 99% 120 DN40 DN40
    LMFD99-150 99% 150 DN40 DN40
    LMFD99-200 99% 200 DN50 DN40
    LMFD99-500 99% 500 DN80 DN40
    LMFD99-800 99% 800 DN100 DN80
    LMFD99-1000 99% 1000 DN100 DN100
    LMFD99-2000 99% 2000 DN125 DN100
    LMFD99-3000 99% 3000 DN125 DN125
