    Custom Medical Oxygen Generation System

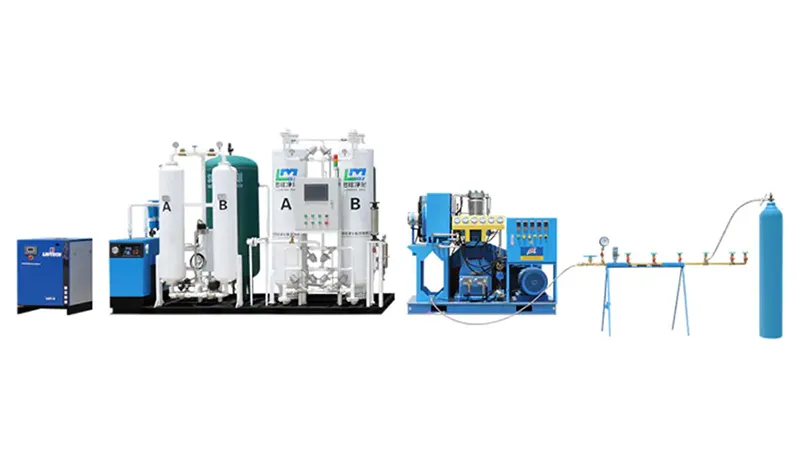

    Custom-Built PSA Oxygen Generator (with Oxygen Filling Station)

    The medical oxygen on-site filling station produces medical-grade oxygen through pressure swing adsorption (PSA) technology and supports immediate oxygen supply at the point of use. Oxygen is physically separated and purified from ambient air to meet clinical requirements for on-site generation, storage, and filling.

    Technical Specifications
    • Oxygen capacity: 1-200Nm³/h (standard conditions)
    • Oxygen purity: 93%±2% (per Chinese National Standard)
    • Outlet pressure: 0.1-0.55MPa (gauge, adjustable)
    • Oxygen dew point: ≤-40°C (at atmospheric pressure)
    Process Description
    • Feed Air Pretreatment
      Clean compressed air is filtered and dried to remove moisture, oil mist, and particulate impurities, ensuring stable and clean inlet conditions.
    • PSA Adsorption & Separation
      Zeolite molecular sieve selectively adsorbs nitrogen under controlled pressure, allowing oxygen to accumulate in the gas phase.
      Dual-tower PSA operation supports continuous oxygen production.
    • Continuous Production & Purification

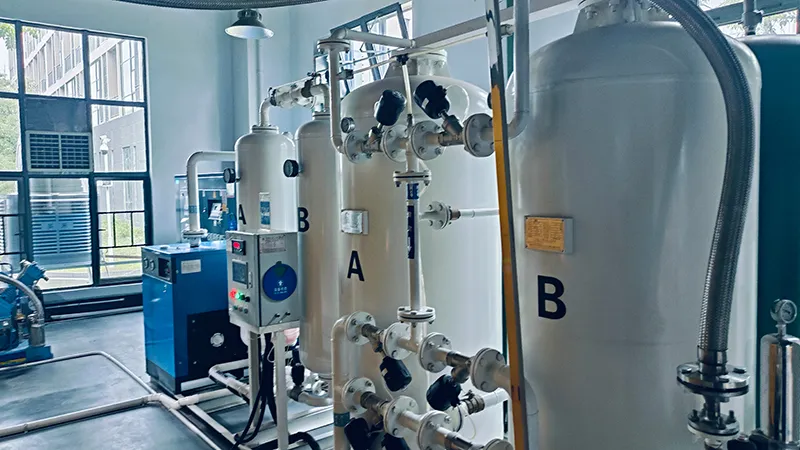

      Two adsorption towers operate alternately. One tower performs adsorption and oxygen production, while the other undergoes depressurization and regeneration. This ensures an uninterrupted supply, with oxygen purity stable at 93%±2%, or upgradable to 99.5% based on specific clinical or industrial requirements.
    • Storage, Delivery & Commercial Filling
      Medical-grade oxygen is buffered in storage tanks and delivered through pipelines or filling equipment to clinical terminals, supporting immediate oxygen supply and cylinder filling.
    • On-site filling reduces supply chain dependency and operating cost
      In regions where medical oxygen cylinders are expensive or difficult to transport, on-site filling stations provide a practical solution. Medical oxygen generators support local oxygen consumption, while surplus oxygen is filled into cylinders for distribution or sale, improving supply reliability and creating additional revenue opportunities.
    Technical Parameters
    Model Flow rate (Nm³/h) Equivalent hospital beds Power(kW) Dimensions (L×W×H, mm)
    LMO93-1 1 20 5.8 1800×1400×1800
    LMO93-3 3 50 7.6 2000×1400×1900
    LMO93-5 5 100 7.8 2000×1500×1900
    LMO93-10 10 150 16.7 2000×1500×2100
    LMO93-15 15 300 19.9 2500×1800×2350
    LMO93-20 20 400 33.5 2500×1800×2350
    LMO93-30 30 600 38.9 2800×2000×2350
    LMO93-40 40 800 47.9 3000×2000×2450
    LMO93-50 50 1000 58.5 3800×2200×2750
    LMO93-60 60 1200 78.8 3800×2200×2850
    LMO93-70 70 1500 98 4500×2300×3100
    LMO93-80 80 1800 98 4500×2300×3100
